Full-Vision Camera + High-Resolution CCD. Professional for cutting embroidered textiles and printing advertising labels. This machine is ideal for cutting roll materials, based on vision technology and with high movement speed for edge cutting or spot marking.









Professional roll feeding system allows the material to be fed automatically, bringing high efficiency to cutting jobs.













There is an optional X-axis beam, single X-axis beam, or dual X-axis beam.

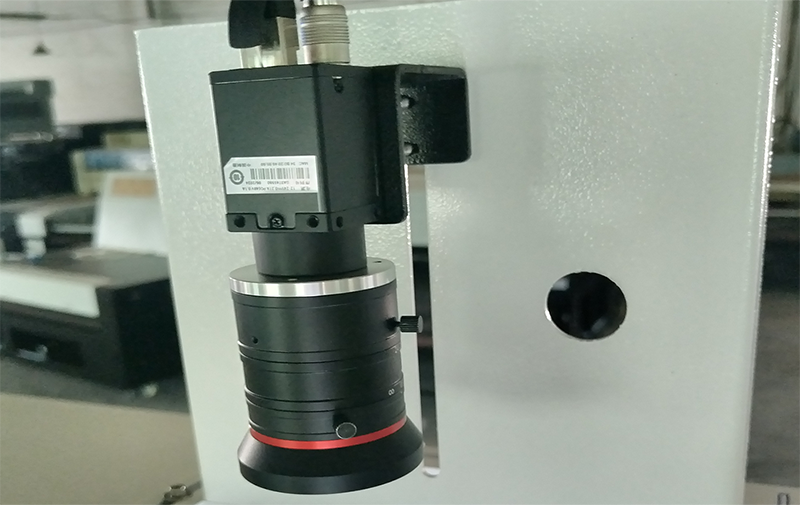

It adopts a high-resolution SLR camera like the complete set of ZHIYUAN systems, or the HIKROBOT industrial camera system















Standard configuration: Rida Rd6442 laser motion controller, leadshine stepper motor and drivers,

S & A Industrial Water Cooler,Hailea 135w air compressor 750w smoke extractor





















Automatic feeding worktable can be integrated with CCD Vision laser cutting machine

Makes laser cutting smarter and faster, and saves labor costs





















XY linear guide system integrated XY linear guide system internal slip XY linear guide system external slip system

















The body color of laser cutting machine can be customized























100w-260w CO2 laser tube for optional





































Model	Working Area	Power Option	Cutting Heads	Focal length	Cutting Speed	Power input
SCCD6040	600*400mm	50-80w	Individual/dual heads	1.5/2/2.5	0-36000 Mm/Min	AC110/220V +/-10% 50/60Hz
SCCD9060	900*600mm	60-130w	Individual/dual heads	1.5/2/2.5/3
SCCD10080	1000*800mm	60-130w	Individual/dual heads	1.5/2/2.5/3
SCCD12080	1200*800mm	60-130w	Individual/dual heads	1.5/2/2.5/3
SCCD13090	1300*900mm	80-150w	Single/Dual/Four Heads	2 "/2.5"/3 "/4"
SCCD140100	1400*1000mm	80-150w	Single/Dual/Four Heads	2 "/2.5"/3 "/4"
SCCD160100	1600*1000mm	80-180w	Single/Dual/Four Heads	2 "/2.5"/3 "/4"
SCCD180120	1800*1200mm	80-180w	Single/Dual/Four Heads	2 "/2.5"/3 "/4"
